Package theia :: Package optics :: Module component :: Class SetupComponent

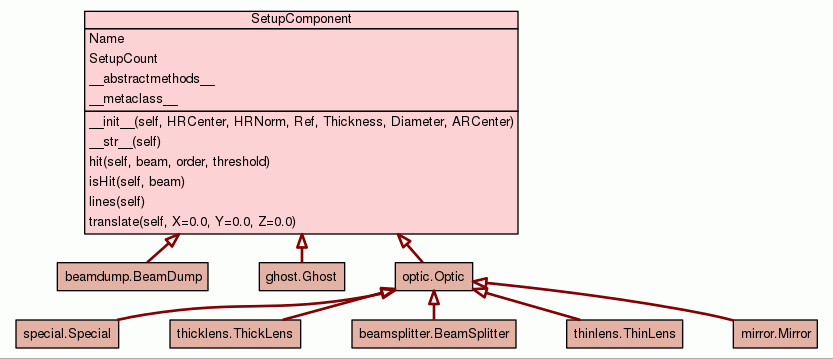

Class SetupComponent



SetupComponent class.

This is an Abstract Base Class for all the components (optical or not) of
the setup. Its methods may be implemented in daughter classes.

*=== Attributes ===*
SetupCount: class attribute, counts setup components. [integer]
HRCenter: center of the principal face of the component in space.
    [3D vector]
ARCenter: center of the secondary face of the component in space.
    [3D vector]
HRNorm: normal unitary vector the this principal face, supposed to point
    outside the media. [3D vector]
Thick: thickness of the component, counted in opposite direction to
    HRNorm. [float]
Dia: diameter of the component. [float]
Name: name of the component. [string]
InBeams: list of all beams incident on the component. [list of GaussianBeam]
OutBeams: list of all beams out
Ref: reference string (for keeping track with the lab). [string]

Nested Classes

[hide private]

__metaclass__
Metaclass for defining Abstract Base Classes (ABCs).

Instance Methods

[hide private]

__init__(self, HRCenter, HRNorm, Ref, Thickness, Diameter, ARCenter)
SetupComponent initializer.

source code

__str__(self)
String representation of the component, when calling print(object).

source code

hit(self, beam, order, threshold)
Compute the refracted and reflected beams after interaction.

source code

isHit(self, beam)
Method to determine if component is hit by a beam.

source code

lines(self)
Method to return the list of strings to __str__.

source code

translate(self, X=0.0, Y=0.0, Z=0.0)
Move the component to (current position + (X, Y, Z)).

source code

Inherited from object: __delattr__, __format__, __getattribute__, __hash__, __new__, __reduce__, __reduce_ex__, __repr__, __setattr__, __sizeof__, __subclasshook__
