Package theia :: Package optics :: Module beamdump :: Class BeamDump

Class BeamDump



BeamDump class.

This class represents components on which rays stop. They have cylindrical
symmetry and stop beams on all their faces. They can represent baffles
for example.

*=== Attributes ===*
SetupCount (inherited): class attribute, counts all setup components.
    [integer]
Name: class attribute. [string]
HRCenter (inherited): center of the principal face of the BeamDump in space.
    [3D vector]
ARCenter (inherited): center of the secondary face of the BeamDump in space.
    [3D vector]
HRnorm (inherited): normal unitary vector the this principal face,
    supposed to point outside the media. [3D vector]
Thick (inherited): thickness of the dump, counted in opposite direction to
    HRNorm. [float]
Dia (inherited): diameter of the component. [float]
Ref (inherited): reference string (for keeping track with the lab). [string]

Nested Classes

[hide private]

Inherited from component.SetupComponent: __metaclass__

Instance Methods

[hide private]

__init__(self, X=0.0, Y=0.0, Z=0.0, Theta=1.57079632679, Phi=0.0, Ref=None, Thickness=0.02, Diameter=0.05)
BeamDump initializer.

source code

lines(self)
Return the list of lines needed to print the object.

source code

isHit(self, beam)
Determine if a beam hits the BeamDump.

source code

hit(self, beam, order, threshold)
Compute the refracted and reflected beams after interaction.

source code

Inherited from component.SetupComponent: __str__, translate

Inherited from object: __delattr__, __format__, __getattribute__, __hash__, __new__, __reduce__, __reduce_ex__, __repr__, __setattr__, __sizeof__, __subclasshook__

Class Variables

[hide private]

Name = 'BeamDump'

__abstractmethods__ = frozenset([])

Inherited from component.SetupComponent: SetupCount

Inherited from component.SetupComponent (private): _abc_cache, _abc_negative_cache, _abc_negative_cache_version, _abc_registry

Properties

[hide private]

Inherited from object: __class__

Method Details

[hide private]

init(self, X=0.0, Y=0.0, Z=0.0, Theta=1.57079632679, Phi=0.0, Ref=None, Thickness=0.02, Diameter=0.05)
(Constructor)

source code

BeamDump initializer.

Parameters are the attributes.

Returns a BeamDump.

Overrides: object.__init__

lines(self)

source code

Return the list of lines needed to print the object.

Overrides: component.SetupComponent.lines

isHit(self, beam)

source code

Determine if a beam hits the BeamDump.

This uses the line***Inter functions from the geometry module to find
characteristics of impact of beams on beamdumps.

beam: incoming beam. [GaussianBeam]

Returns a dictionary with keys:
    'isHit': whether the beam hits the dump. [boolean]
    'intersection point': point in space where it is first hit.
        [3D vector]
    'face': to indicate which face is first hit, can be 'HR', 'AR' or
        'side'. [string]
    'distance': geometrical distance from beam origin to impact. [float]

Overrides: component.SetupComponent.isHit

hit(self, beam, order, threshold)

source code

Compute the refracted and reflected beams after interaction.

BeamDumps always stop beams.

beam: incident beam. [GaussianBeam]
order: maximum strayness of daughter beams, which are not returned if
    their strayness is over this order. [integer]
threshold: idem for the power of the daughter beams. [float]

Returns a dictionary of beams with keys:
    't': None
    'r': None

Overrides: component.SetupComponent.hit

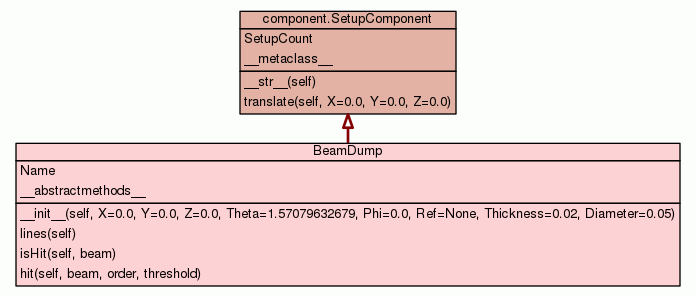

Class BeamDump
